Overview of Magnetic Particle Inspection (MPI)
Magnetic Particle Inspection (MPI) is a widely recognized non-destructive testing method that identifies surface and subsurface defects in ferromagnetic materials. It is particularly useful in industries such as aerospace, automotive, and manufacturing, where structural integrity is critical.
Principles of MPI
The MPI process involves several key steps:
- Magnetization: The test piece is magnetized using either direct current (DC) or alternating current (AC). This creates a magnetic field within the material.
- Application of Magnetic Particles: Iron filings or other magnetic particles are applied to the surface of the magnetized component. These particles can be dry or suspended in a liquid.

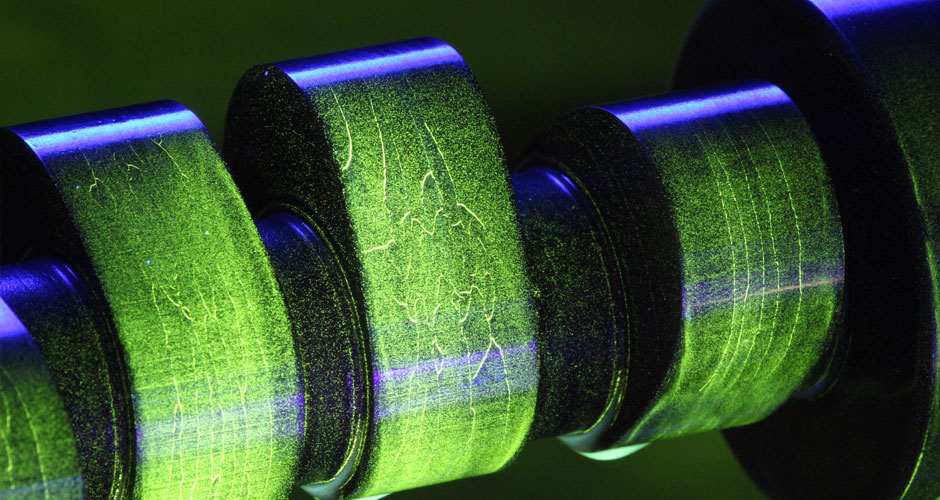

- Defect Detection: The magnetic field will cause the particles to accumulate at the locations of any surface or near-surface defects, forming visible indications.
Applications of MPI
Magnetic Particle Inspection is used in various industries to ensure the quality and safety of critical components:
- Aerospace: Inspecting aircraft components for fatigue cracks and other structural defects.
- Automotive: Evaluating the integrity of chassis, suspension systems, and engine parts.
- Manufacturing: Ensuring quality control in welded and machined components.
Advantages of MPI
MPI offers several distinct advantages:
- High Sensitivity: Capable of detecting very fine surface defects that may not be visible to the naked eye.
- Quick Results: The process can be completed rapidly, providing immediate feedback on material integrity.
- Cost-Effective: MPI is relatively inexpensive compared to other non-destructive testing methods.
Limitations of MPI
While MPI is effective, it also has some limitations:
- Material Restriction: MPI is only applicable to ferromagnetic materials, such as iron, nickel, and cobalt.
- Surface Preparation: The surface must be clean and free from contaminants for accurate results.
- Surface Condition: Coatings, paints, and other surface treatments can interfere with the inspection process.
Conclusion
Magnetic Particle Inspection (MPI) is an essential tool for detecting defects in ferromagnetic materials, providing critical insights into the integrity and safety of components across various industries. By utilizing MPI, organizations can enhance their quality control processes and ensure reliable performance in their products.
