Magnetic Flux Leakage (MFL) is a non-destructive testing method used to detect surface and near-surface defects in ferromagnetic materials, particularly in pipelines and storage tanks, by analyzing the magnetic field disruptions.
Understanding Magnetic Flux Leakage (MFL)
Magnetic Flux Leakage (MFL) is a highly effective non-destructive testing (NDT) technique used primarily for inspecting ferromagnetic materials such as steel. It is widely employed in industries like oil and gas, petrochemicals, and manufacturing to identify defects such as corrosion, pitting, and cracks that can compromise structural integrity.
How MFL Works
The MFL technique operates on the principle of magnetic fields and flux lines:
- Magnetization: The component being tested is magnetized using strong permanent magnets or electromagnetic coils.
- Flux Leakage Detection: Any defects present will disrupt the magnetic field, causing magnetic flux lines to leak out of the surface.
- Measurement: Specialized sensors detect the leakage flux, and the resulting signals are analyzed to determine the location and severity of the defects.
Applications of MFL
MFL is utilized across various applications, including:
- Pipeline Inspections: Assessing the integrity of oil and gas pipelines for corrosion and other defects.

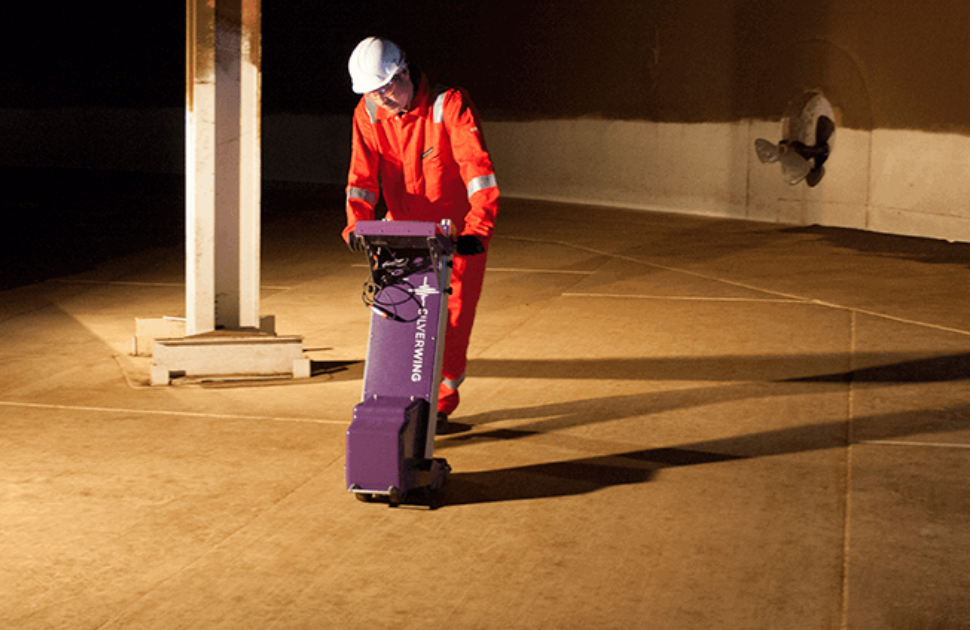

- Storage Tank Inspections: Evaluating the condition of storage tanks to ensure safety and compliance.
- Railroad Track Inspections: Monitoring the condition of rail tracks for cracks and material degradation.
Advantages of MFL
The Magnetic Flux Leakage method provides several significant benefits:
- Speed: MFL inspections can be conducted quickly, allowing for rapid assessment of large areas.
- Depth Penetration: Capable of detecting near-surface and surface defects effectively.
- Versatility: Can be applied to a variety of shapes and sizes, including complex geometries.
- Automated Options: MFL technology can be easily integrated into automated inspection systems, improving efficiency.
Limitations of MFL
Despite its advantages, MFL also presents certain limitations:
- Material Limitations: MFL is primarily effective on ferromagnetic materials and may not be suitable for non-magnetic materials.
- Surface Preparation: The presence of coatings or non-magnetic materials can hinder accurate readings.
- Defect Orientation: Certain types of defects, particularly those aligned with the magnetic field, may not be detected effectively.
Conclusion
Magnetic Flux Leakage (MFL) is a crucial non-destructive testing technique that enables effective detection of surface and near-surface defects in ferromagnetic materials. By providing quick and reliable assessments, MFL plays a vital role in ensuring the safety and integrity of critical infrastructure across various industries.
