The Internal Rotary Inspection System (IRIS) is an advanced non-destructive testing technique designed for the inspection of tube and pipe integrity, utilizing ultrasonic technology to identify wall thickness and detect defects.
Introduction to Internal Rotary Inspection System (IRIS)
The Internal Rotary Inspection System (IRIS) is a sophisticated non-destructive testing (NDT) method primarily used for inspecting the integrity of tubes and pipes. This technique utilizes ultrasonic waves and is particularly effective for assessing wall thickness and detecting internal defects, making it invaluable in industries such as oil and gas, power generation, and manufacturing.
How IRIS Works
The IRIS process involves the following key steps:

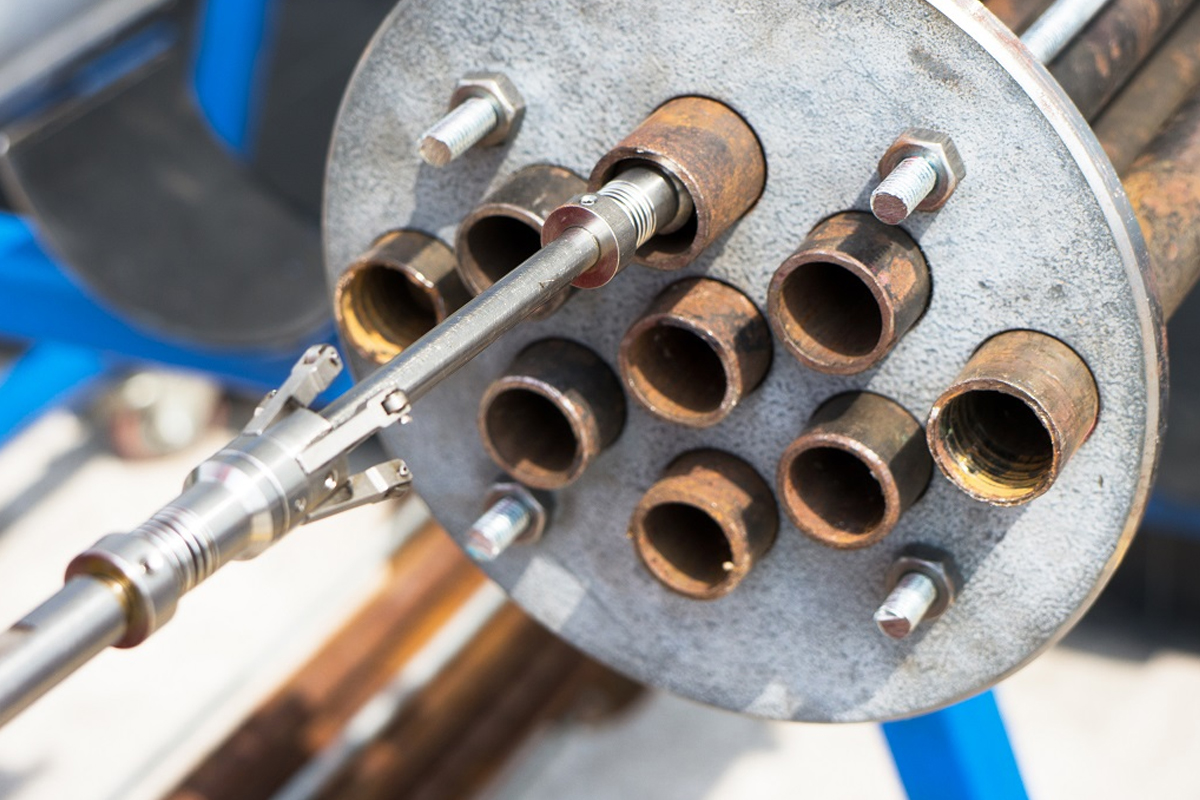

- Probe Insertion: A specialized probe is inserted into the tube or pipe, which is equipped with a rotating ultrasonic transducer.
- Ultrasonic Transmission: The transducer emits high-frequency ultrasonic waves that travel through the wall of the pipe or tube.
- Echo Reception: Reflected waves from the inner and outer surfaces of the material are received back by the transducer.
- Data Analysis: The system analyzes the time delay and amplitude of the reflected signals to determine wall thickness and identify defects.
Applications of IRIS
The IRIS technique is utilized in various applications, including:
- Oil and Gas: Inspecting pipelines and storage tanks for corrosion and wear.
- Power Generation: Assessing boiler tubes and heat exchangers for integrity and safety.
- Manufacturing: Quality control of seamless and welded pipes to ensure compliance with industry standards.
Advantages of IRIS
IRIS offers several notable benefits:
- High Precision: Capable of measuring wall thickness with exceptional accuracy, often down to the millimeter scale.
- Internal Inspection: Provides a detailed view of internal conditions, detecting flaws that are not visible externally.
- Versatility: Applicable to various materials, including metals, composites, and plastics.
- Non-Destructive: Ensures that the integrity of the component is maintained during inspection.
Limitations of IRIS
Despite its advantages, IRIS also has some limitations:
- Access Requirements: Requires access to the internal surface of the pipe or tube for effective inspection.
- Operator Expertise: Requires skilled technicians for accurate setup and interpretation of results.
- Limited to Cylindrical Shapes: Primarily suitable for cylindrical structures and may not be effective for complex geometries.
Conclusion
The Internal Rotary Inspection System (IRIS) is a powerful tool for maintaining the integrity and safety of tubes and pipes across various industries. By providing detailed insights into wall thickness and detecting internal defects, IRIS plays a crucial role in proactive maintenance and quality assurance.
