Understanding Dye Penetrant Inspection (DPI)
Dye Penetrant Inspection (DPI) is a widely used non-destructive testing (NDT) technique designed to identify surface-breaking flaws in non-porous materials. This method is particularly effective for detecting cracks, voids, and other imperfections that may compromise the structural integrity of a component. DPI is commonly employed in aerospace, automotive, manufacturing, and construction industries.
How DPI Works
The process of Dye Penetrant Inspection involves several key steps:
- Surface Preparation: The test surface is cleaned to remove any contaminants, such as oil, grease, or dirt, to ensure accurate results.

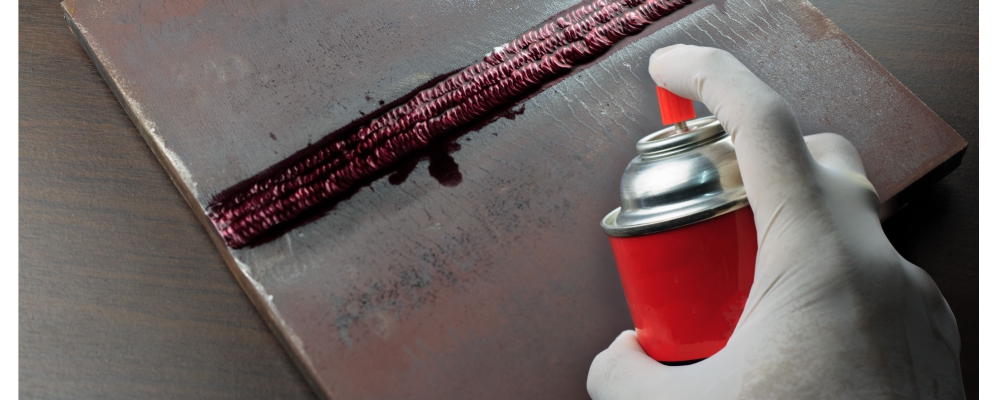

- Application of Penetrant: A liquid dye is applied to the surface, which seeps into any surface cracks or defects through capillary action.
- Excess Penetrant Removal: After a specified dwell time, excess penetrant is removed from the surface, typically using a solvent or cleaner.
- Application of Developer: A developer is then applied to draw out the penetrant from the defects, forming visible indications on the surface.
- Inspection: The inspector examines the surface for any visible signs of defects, using UV or white light to enhance visibility.
Applications of DPI
Dye Penetrant Inspection is utilized across a variety of sectors:
- Aerospace: Ensuring the integrity of aircraft components and structures.
- Automotive: Inspecting engine blocks, transmission cases, and other critical components for defects.
- Manufacturing: Quality control for welds, castings, and fabricated parts.
- Construction: Assessing the quality of structural elements such as beams and columns.
Advantages of Dye Penetrant Inspection
DPI offers several benefits, making it a preferred choice for many industries:
- Cost-Effective: DPI is relatively inexpensive compared to other NDT methods.
- Rapid Results: The inspection process is quick, allowing for immediate feedback on component integrity.
- Versatility: DPI can be applied to a wide range of materials, including metals, plastics, and ceramics.
- High Sensitivity: Capable of detecting very fine surface defects.
Limitations of DPI
Despite its advantages, DPI has some limitations:
- Surface Limitations: It can only detect surface-breaking defects and not subsurface flaws.
- Material Restrictions: Not suitable for porous materials, as the dye may penetrate the material.
- Environmental Sensitivity: The effectiveness of DPI can be affected by environmental conditions, such as temperature and humidity.
Conclusion
Dye Penetrant Inspection is a valuable tool in the arsenal of non-destructive testing methods. Its ability to quickly and effectively identify surface defects makes it an essential process in ensuring the safety and reliability of components across various industries.
